Full complement track roller – yoke type

2005

Full complement track roller – yoke type is characterized by a thick outer ring that can directly rotate directly on the mating tracks. Typically used when high load capacity and high shock resistance are required it can, also, support angular misalignments because of the particular geometry of the generatrix of the outer surface. The axial guide (non-separable assembly) gives the roller the ability to support axial loads. The full complement roller can support very high loads.

Some application fields

  • general handling

Alternative design

  • track roller for low and high temperatures applications
  • track roller employed in corrosive environments
  • in according to customer drawing
Production rangemm

d
mm

D
mm

B
Min. value10017060.3
Max. value10001170140
2005 3d

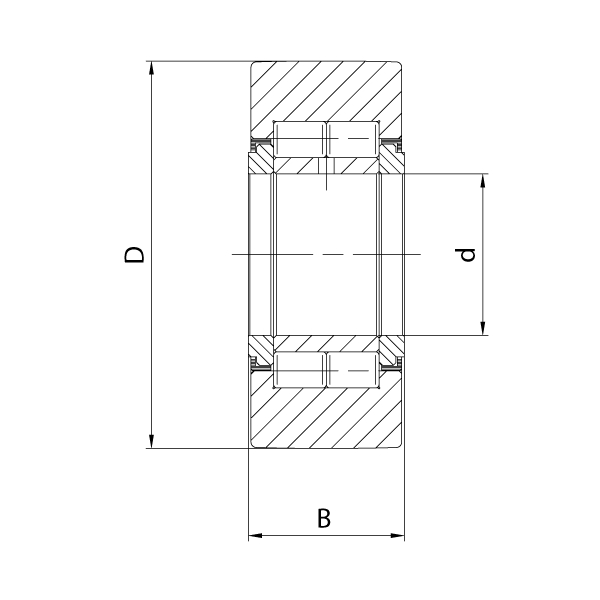

2005 2d
