Combined bearings for steel section adjustable for high dimension

3006

The combined bearings for steel section adjustable for high dimension used in the forklifts is characterized by two track rollers connected to each other by a mild-steel pin. The suitably shaped rollers separately support the axial and radial loads. This type of combined bearing, for extremely heavy applications, allows the axial assembly to be adjusted using an eccentric system. The watertight version and the one with a retaining cap (relubricatable) are available.

Some application fields

  • forklift (mast roller)
  • general handling

Alternative executions

  • bearings for low and high temperatures applications
  • bearings employed in corrosive environments
  • in according to customer drawing
Production range mm
d
mm
D
mm
B
Min. value 80 165 69
Max. value 150 280 119.5
TTS - 3006 3D

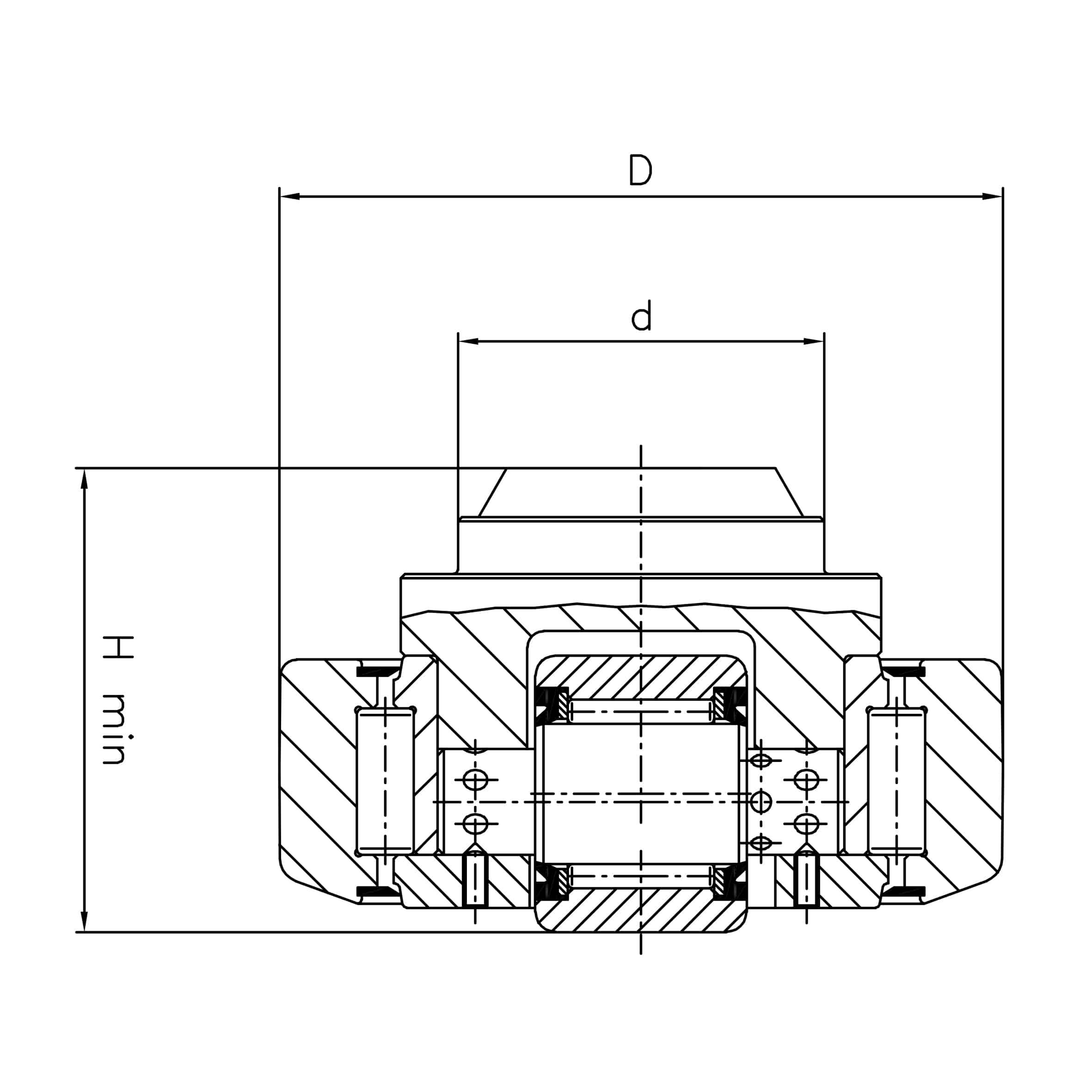

TTS - 3006 2D
