High dimensions four-point contact ball bearings


High dimensions four-point contact ball bearings is a Single row bearing with one inner ring and one outer ring. The raceways are designed to support an axial load from both sides by themselves. It is smaller than the double row angular contact ball bearings along the axial direction. Typically its contact angle θ is 35° or 45° and the inner ring is made up of two parts. A large load carrying capacity due to the high number of balls is the trademark of this type of bearing. The two inner semi-rings and the outer ring together with the cage/balls group can be separately assembled.

Some application fields

  • rolling mill, finishing rolls
  • machine tools, vertical lathes

Alternative design

  • with dimensional and running accuracy better than standard
  • with clearance different than standard
  • for low temperatures applications and for high temperature applications
  • with seals or with protection shields
  • employed in corrosive environments
  • in according to customer drawing
Production Rangemm



Min. value10015024
Max. value480870170
Cuscinetti a sfere a quattro punti di contatto di grandi dimensioni

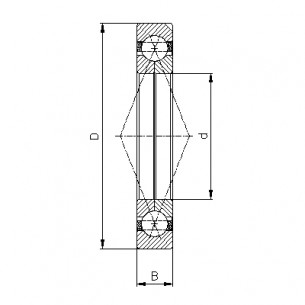

4006 2d
