Needle roller/axial cylindrical roller bearing

6030

Needle roller/axial cylindrical roller bearing typically made up of a double direction axial cylindrical roller bearing and a driving radial needle roller bearing. This type of bearing is used in the transmission of high axial loads and when the axial positioning must be very precise (recirculating ball-screws) It is also available with an outer flanged ring to make the assembly of the bearing to the machine easier.

Some application fields

  • general handling

Alternative design

  • track rollers for low and high temperatures applications
  • track rollers employed in corrosive environments
  • in according to customer drawing
Product rangemm

d
mm

D
mm

B
Min. values144540
Max. values90180110
Cuscinetti asso-radiali a rullini e rulli cilindrici per viti a ricircolo di sfere

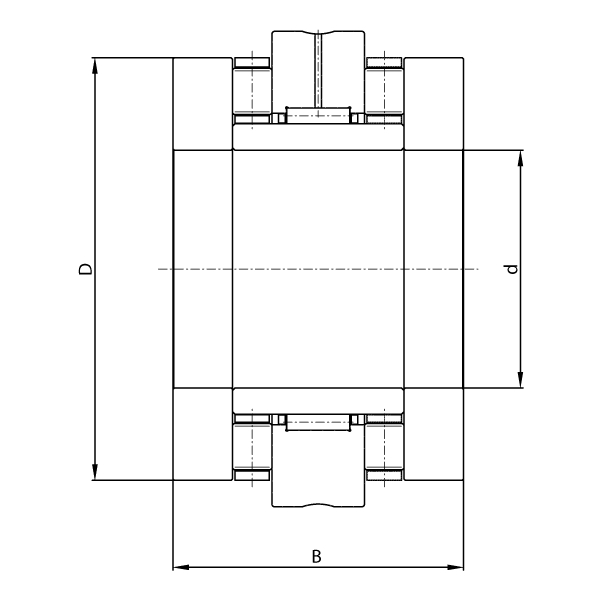

6030 2d
