Axial/radial roller bearing

6035

Axial/radial roller bearing is ypically made up of a double direction axial cylindrical roller bearing and a driving radial roller bearing. An outer flanged ring makes the assembly of the bearing to the machine very easy. This type of bearing is used in the transmission of high radial and axial loads from both sides and it can support tilting moments.

Some application fields

  • machine tools, positioning and rotary table

Alternative design

  • in according to customer drawing
Production Rangemm

d
mm

D
mm

B
Min. value5012630
Max. values650870122
6035 3D

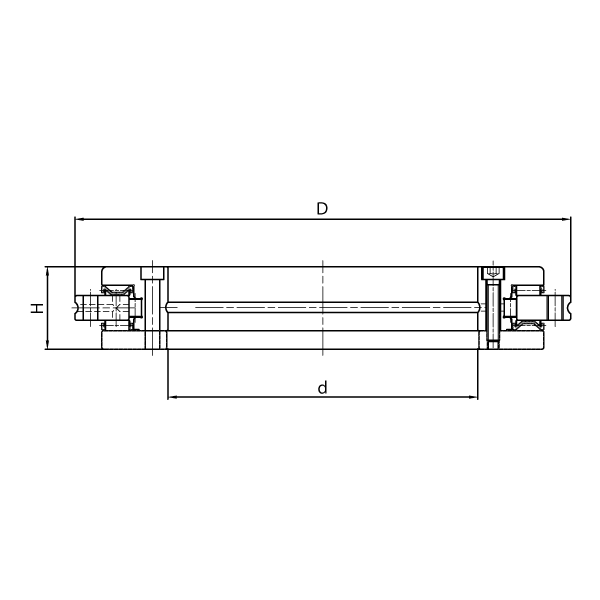

6035 2d
