Single row angular contact ball bearing for recirculating ball-screws

6020

The single row angular contact ball bearing for recirculating ball-screws has been especially developed to support recirculating ball-screws. It offers high precision and stiffness, a low coefficient of friction, high rotational speed during quick positional shifts.

Some application fields

  • rolling mills, recirculating ball-screws

Alternative design

  • universal execution
  • supplied coupled in different provisions
  • with seal or with protection shields
  • in according to customer drawing
Production Rangemm

d		mm

D		mm

B
Min. value123210
Max. value13028058
6020 3d

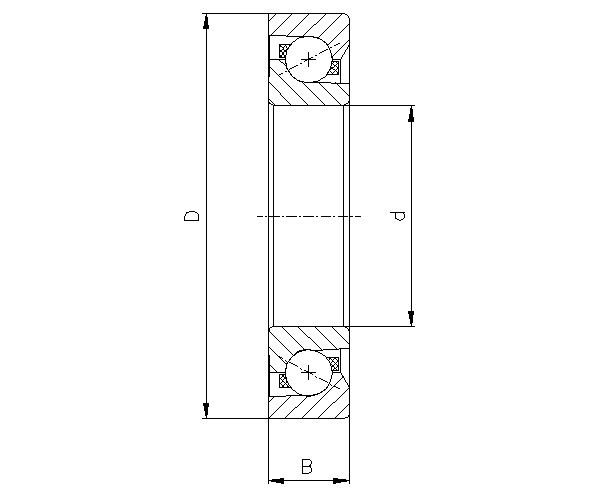

6020 2d
