ItalianoHigh dimension spherical roller thrust bearing
4034
High dimension spherical roller thrust bearing is characterized by a center alignment angle that permits the transmission of the load from one raceway to the other. It can, therefore, simultaneously support a radial and an axial load. It is steerable and, for this reason, it does not feel either the effect of a flection of the shaft or any mismatch between the position of the shaft and its cage.
Some application fields
- mining industry, tower crane
- forging
- supports for intermediate ship axis
Alternative design
- with dimensional and running accuracy better than standard
- in according to customer drawing

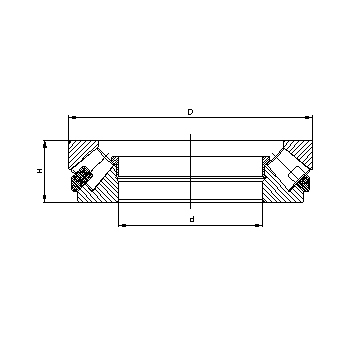

| Production Range | mm d | mm D | mm H |
| Min. value | 100 | 170 | 39 |
| Max. value | 1600 | 2280 | 408 |
