Needle track roller – yoke type – with cage and removable inner ring

2002

Needle track roller – yoke type – with cage and removable inner ring is characterized by a thick outer ring that can directly rotate on the mating tracks. Typically used when high load capacity and high shock resistance are required it can, also, support angular misalignments because of the particular geometry of the generatrix of the outer surface. The inner ring is removable in order to let the needles roll on the raceway of the shaft. A watertight version is also available.

Some application fields

  • general handling

Alternative design

  • track roller for low and high temperatures applications
  • track roller employed in corrosive environments
  • in according to customer drawing
Production rangemm

d
mm

D
mm

B
Min. value61612
Max. value10001170140
2002 3d

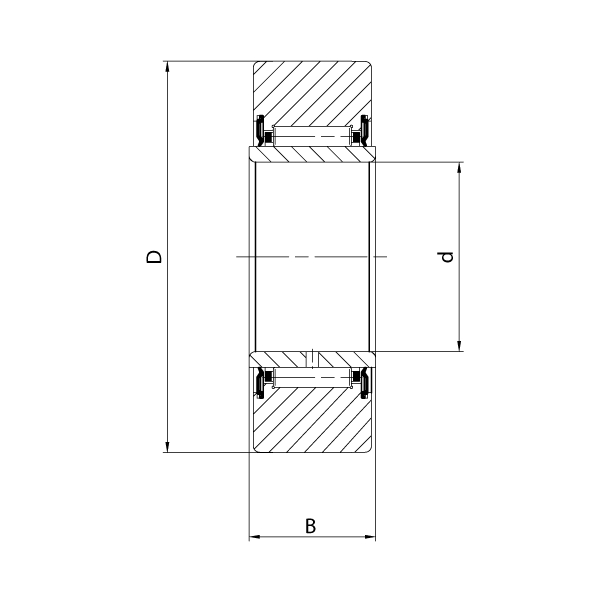

2002 2d
